Brembo 18z Brakes on B6/B7 Audi A4/S4/RS4

How to get Brembo 18z brake calipers (from the Audi Q7, VW Touareg and Porsche Cayenne) onto your Audi A4 (B6/B7)

[ This post is mostly complete – just some additional images to follow ]

Most of this information will also be relevant to other VAG (VW/Audi Group) cars so if you want 18z’ees on your Golf then this will probably help you too but might not cover the specifics or unique issues presented by your particular model.

You will need:

(Main items linked to where I found them cheapest on ebay – you’re welcome!)

Parts in detail

Brembo 18z Calipers

The 18z caliper is a big, modern, and proven caliper designed and manufactured by the braking system Gods themselves, Brembo. It’s an excellent upgrade from most stock brake setups (and the fact they look really cool also helps).

Example of Audi Q7 front brakes mounted forward of the wheel hub
Audi Q7 caliper forward of the wheel hub. Imagine rotating it backwards around the disc to the rear of the hub – the bleed nipple would be at the bottom which is why we need to swap things around

The 18Z caliper for the Q7, Touareg and Cayenne applications all sit forward of the wheel hub. On the A4 they will sit behind and so we need to change some things when sourcing calipers from these vehicles. Each caliper has 6 pistons (“6-pot calipers”), 2 of which are much smaller. This smaller pair of pistons is designed to aid even pad wear and should be the first pair to meet the disc as it turns into the caliper. When mounted forward of the hub this smaller pair are at the top, rearward of the hub they should be at the bottom.

In order for the bleed nipples to remain at the top of the caliper and for the smaller pistons to meet the disc first we need to flip over the caliper link pipes and bleed nipples. This is really straight forward so don’t be scared to do it yourself. If you’re having your calipers refurb’d or powder coated, let them know you want the pipes flipped over before-hand and they’ll do it for you. In all cases I’ve seen the powder coater has coated the calipers with the link pipes in place and you don’t want to damage the finish swapping things afterwards. When tightening bleed screws and link-pipe nuts be careful not to over-tighten, they need only a light nip up (this the professional torque term).

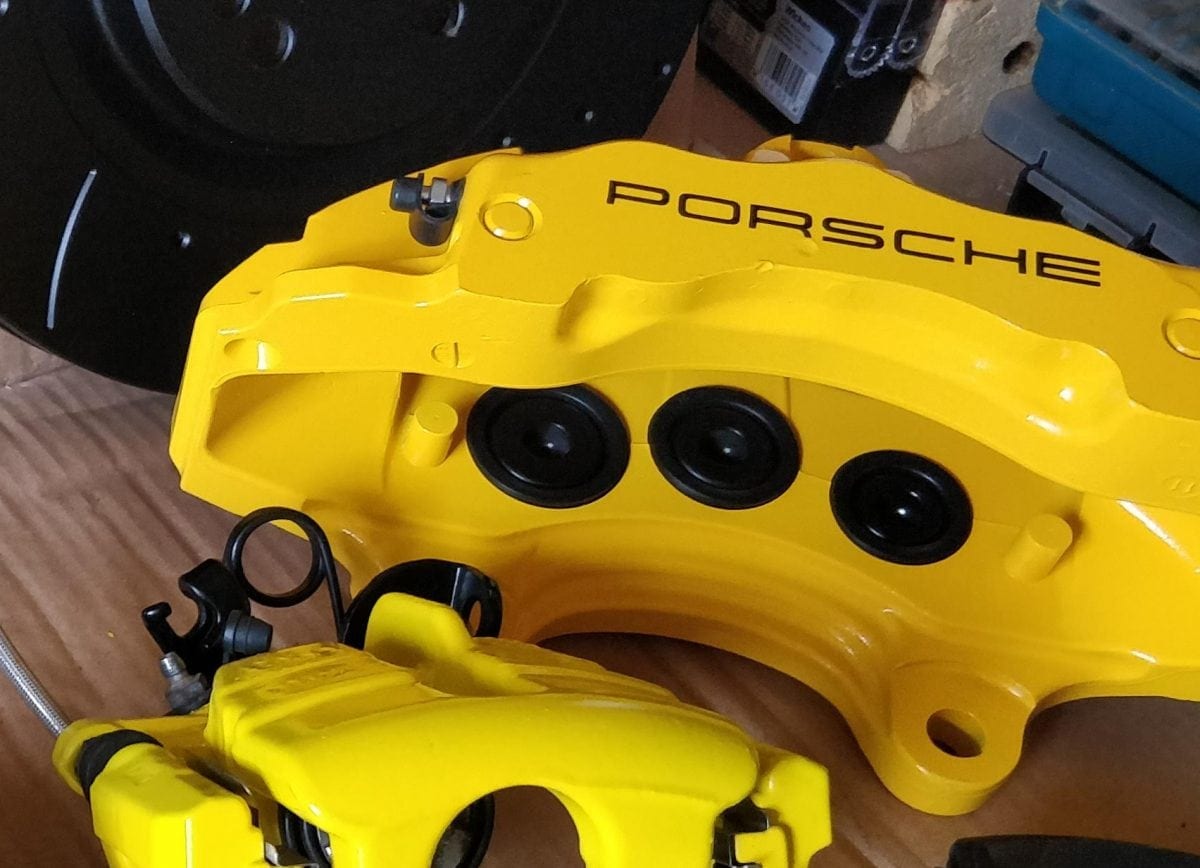

Brembo 18Z brake caliper on the work bench showing varying piston sizes. Bleed nipple is at the top, smallest piston is at the bottom.
18ZL caliper (left side) showing varying piston sizes, bleed nipples: top, small piston: bottom. (S4 rear caliper in view prior to colour matching it to the 18Zees)

Each calliper is marked “18ZR” and “18ZL” to denote which side it should be mounted. Putting the 18ZR off a Q7 straight onto on the left side of a A4 would technically fit, and the nipples would be at the top but the smaller pistons would be the top pair and the last to meet the disc as it rotates into the caliper, which is wrong. Just be mindful of this and check the markings, pistons and link-pipes for correct orientation before installation.

ML500 345mm x 32mm Discs

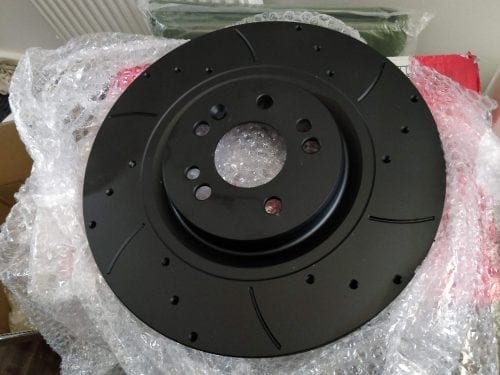

Mtec ML500 V8 brake disc: black coated, drilled and grooved.
Coated, drilled and grooved ML500 V8 brake disc with custom Audi A4 centre bore from Mtec Brakes

After a lot of research I chose to use the Mercedes ML500 V8 discs because they were the perfect width, offset and reasonably affordable. They are not quite as big as the 18z calipers can accommodate (350mm potential) but still comparatively massive against the standard audi discs. The only issue is the Audi hub is 1mm larger than the Mercedes and so an extra 0.5mm is needed to be machined off the disc centre bore, making it a total of 1mm larger.

I ordered my discs from Mtec and they modified the bore for me. I also had them drilled and grooved and added the optional black protective coating. Obviously this coating wears off the actual braking surface but protects everywhere else from rust and other road crud. All-in with the modification and optional additions I was looking at around £120 for the pair. Given that my B5 RS4 brake discs cost £150 EACH this seemed like a total bargain. For what you get and not having to worry about modifying the centre bore yourself, it is a bargain!

17z Pads

We’re putting 17z pads in our 18z calipers because the ML500 345mm discs are a little smaller diameter that what the 350mm’s 18z’s would usually use. The 17z pads give us a great contact area with the ML500 disc and none of the over-hang we would have got if using 18z pads, plus they’re cheaper too.

17z and 18z pads fit exactly the same so the fitting kit is the same too. I bought a Porsche Cayenne (2002>2010) brake fitting kit specific to Brembo 6-pots.

Pad Wear Sensors

This took a little trial and error to get right. In the end Audi Q5 sensors are what worked. They have the correct male connector, they’re long enough with enough wire connecting the two sensors that they can plug into both pads with no tension on the cable.

Don’t be tricked (like I was) into thinking Touareg 17z wear sensors will work. While they’re long enough and fit the calipers nicely the connector is female so won’t plug into the A4’s loom which is also female. Go for the Q5 (8R chassis) sensors and you’ll be fine.

Upon first installation I was getting a pad wear error. I believe this may have been caused by dirty connector pins or a pinched wire. Disconnected, sprayed the connectors with WD40 and re-routed the wire; all good. No errors.

Audi/VW 17z/18z mounting bolts & locking nuts

The carriers for the standard A4 calipers are threaded themselves and the standard bolts screw into this tread, the 18z calipers do things a bit differently. The Brembos have smooth, unthreaded mounting holes, like the hub itself. This means two things, firstly the new bolts will need to be longer as you’ll be using a locking nut to secure them and secondly, shims are required to reduce the size of the caliper mounting holes and prevent any movement of the caliper on the new bolts. You can buy a bolt kit which includes everything you need for around £35. There were some cheaper kits around but for a good quality set that will last, £35 was reasonable.

I experimented a lot mounting everything up to the hub in various orders and could not get everything together with the bolt heads facing outwards, which would give the most clearance. In my case I found I had to mount everything up with the bolt heads facing inwards on the hub and screwing the 55mm bolts in they ended up fouling the disc. I shortened each bolt by about 4mm with the angle grinder and filed it smooth to get the clearance I needed.

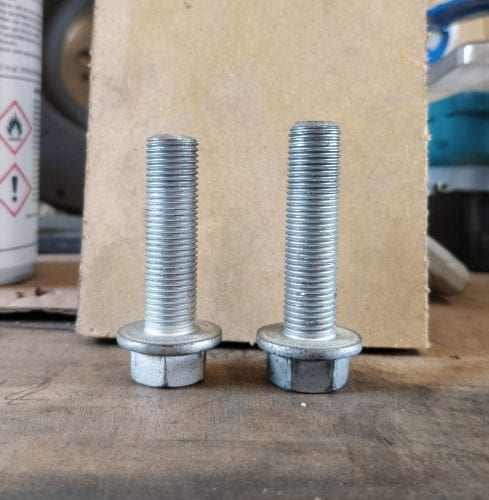

Cut down new bolt to fit (left) Original length new bolt (right)

Tools required for Brembo 18z installation on B6/B7 Audi A4/S4/RS4

Assuming you’ve read the post “Removing B6/B7 Audi A4/S4 front brakes” and already have your calipers unbolted and hanging up out of the way, knock off those tiny original discs and congratulations! It’s time to fit your new brakes!

Here’s the tools you need:

  • 21mm socket (1/2 inch drive)
  • ratchet (1/2 inch drive)
  • adjustable spanner
  • 11mm open-end spanner
  • 14mm open-end spanner (depending on your new brake lines – HEL braided lines required 14mm)

Not essential but highly recommended:

Brembo 18z installation guide

Before you start you might want to spray the nuts on your old brake lines with some penetrating fluid where they couple to the car’s hard lines so that can start working its magic while you’re fitting up the new calipers. Reapply throughout the process as you see fit. These cars are old, things are rusty and seized, that just how it is. Penetrating fluid is your friend.

Time to build up your new brakes!

The pads will slot into the rear of the caliper. Take the metal clip from your fitting kit, apply pressure and slide the retaining pin through. This won’t be easy, you might need to place the caliper down on some card to really apply pressure without scratching the caliper paint.

The retaining pin goes through the hole in caliper, over the top of the clip and back out through the caliper. The pin head has flat faces which seat against corresponding flat spots on the caliper, make sure you insert it the correct way around. Tighten the supplied bolt into the end of the pin to secure it in place. Your pads are now installed.

Fit your pad wear sensors. These will only fit into the pads one way around and simply slot into place. Route the sensor cable securely in place with the retainer built into the pad clip and the channel built into the caliper.

Lastly for the caliper build, screw your brake line into the caliper body. Be careful not to cross-thread; it should not feel tight until it is almost all the way in. There’s no need to really force this down tight and doing so could damage the threads and cause the line to not seal correctly. Secure it but don’t over-do it. With my HEL lines tightened all the way down I am still left with around 4mm thread exposed.

This probably a good time to check your bleed nipples are tightened down too. Just nip them tight enough to ensure they’re not open – leaky nipples are bad (ask you mum).

Here’s where you get to learn from my mistakes as at this point I wanted to fit up the caliper and see if the dust shields required any modification or if some spare B5 RS4 shields I had would work. What I actually found was that none of the sheilds fit correctly, even with some modification and that it was impossible to mount the disc with the caliper already in place.

So with your caliper ready to go, place it to the side and prepare the hub for the new disc. Clean up your hub of any surface rust and grime (parts cleaner and a wire brush are great for this), now position your big new brake disc into place on the hub. If you find that it fouls your dust shield you can try and modify it to fit or just remove it – I removed it.

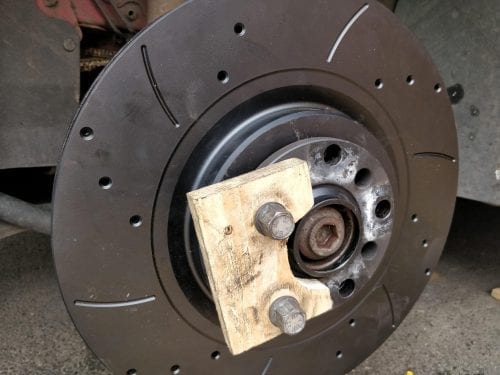

Wooden spacer – unsurprisingly not a genuine Audi tool

The disc will probably fall off if you don’t keep a hand on it, so throw a wheel bolt back in to keep it in place. I actually made myself an impressively ugly wooden spacer to hold the disc flush to the hub while I worked with the caliper.

Here you see the Mtec disc, an 8mm wheel spacer and my pallet wood “stop the disc from wobbling about” spacer. Now we install the caliper!

Forewarning: This can be a little awkward.

You’ll want to hold the caliper in place on the hub with one hand and try and push a bolt through one of the mounting holes from the inside, out with your free hand. You mustn’t push the bolt all the way though as you need to get the locking nut in place the opposite side. As long as you have pushed the bolt though the caliper and most of the way into the hub the caliper will hang on the bolt and you’ll have two hands free to continue the installation.

I found the easiest way to hold the nut was with an adjustable spanner gripped down tightly on the nut – this lets you hold the spanner upside down without the nut falling out like it would with a standard spanner.

Holding the nut in place, screw the bolt in with your 21mm socket and 1/2 inch drive ratchet. It will look something like this:

Adjustable spanner holds locking nut in place from above (looking down at right wheel)

I believe the torque-spec on these caliper mounting bolts is “really f-ing tight.” You don’t want them to come off so summon the power of “Greyskull” and tighten them down like you’re He-Man. (Come back and check them in a couple of days just be be sure they’re good and tight).

You can either jump right into connecting up the brake lines at this point or mount up the opposite side and do both brake lines together. I decided to mount up the opposite side as at this point my old calipers were still connected and tucked out of the way and if anything didn’t go to plan I could still go back to little standard brakes without having to bleed anything. My recommendation is to mount up the other side.

So hopefully you now have both calipers fitted securely onto the hubs, over your new discs. It’s probably about time to hook the lines up then!

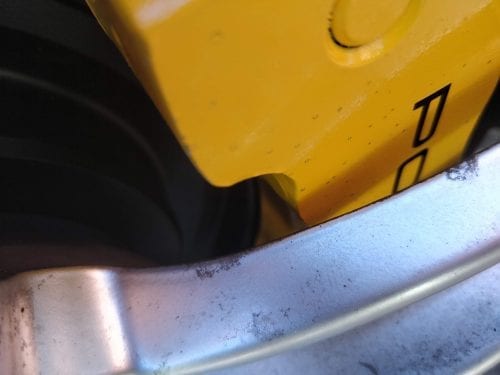

Clearance – Brembo 18Z on B6 A4 with 8mm spacer and 19″ RS6 rep wheels

Before you disconnect the old lines, throw a wheel back on and check your clearances. Even with an 8mm spacer it’s pretty tight with these RS6 rep wheels.

When you disconnect a brake line you will want to work quickly but you don’t need to panic, without pedal pressure the fluid will only drip out very slowly leaving you plenty of time to reconnect your new line without making too much of a mess.

Wrap the lines in paper towel to catch the drips as the fluid is corrosive and will wreck the paint on your calipers and wheels if left to sit.

Make sure you have plenty of brake fluid in your reservoir, you do not want this to drop bellow the minimum level as you could introduce too much air into the system. Top it up and check the level after reconnecting each new line.

An 11mm brake line spanner is the perfect tool to disconnect the old rubber line from the car. A brake line spanner has a small opening to fit over the line but can then be turned to grip onto every face of the nut. A standard open ended 11m spanner can work but it has no ratchet action so it more difficult and doesn’t grip the nut as well.

I was doing this quickly so didn’t stop to take photos but I’ll go back and mock-up everything next time I have a wheel off to show you what you’ll be dealing with. For now, you’ll have to read and use your imagination.

Undo the brake line nut. I gripped the rubber line with some mole-grips to stop it turning with the nut. With the old rubber line disconnected, place the old caliper and line out of the way (fluid will leak from the line if you leave it upside down).

Flip around the 11mm brake line spanner and ratchet up the nut to the new braided line, you’ll have to hold the new line by hand to get it started. To tighten, grip the new line with an open ended spanner (14mm was required for my HEL lines).

Clean up and brake fluid spills and check the reservoir level. Top up if necessary any repeat the line installation for the opposite side.

Finally, secure any excess wear sensor cable with “cable” ties, it’s almost like they were made for this exact purpose!? The original wear sensor retaining bracket was part of the old caliper you just removed. I have heard the B7 RS4 bracket can be used but cannot confirm. Pretty confident cable ties are 100000% cheaper though.

If you leave the cables to flap around unsecured they WIL rub on your wheels and WILL fray and fail. Don’t risk it.

That’s the installation done, all that’s left is the bleed them. I’ll think I’ll do a separate post on brake bleeding, there are numerous ways it can be done but I like my cheap DIY method best – it deserves it’s own article.

Thanks for reading. If it helped you out, let me know in the comments, cheers.

// Matt

Got questions? Leave a comment. I only know the details of doing this on an A4/S4/RS4 but I’ll do my best.


Andy Le wanted to know the spec of the bleed screws. I know my heads are 11mm but other than that I needed to measure one with my gauge from Pro-Bolt…

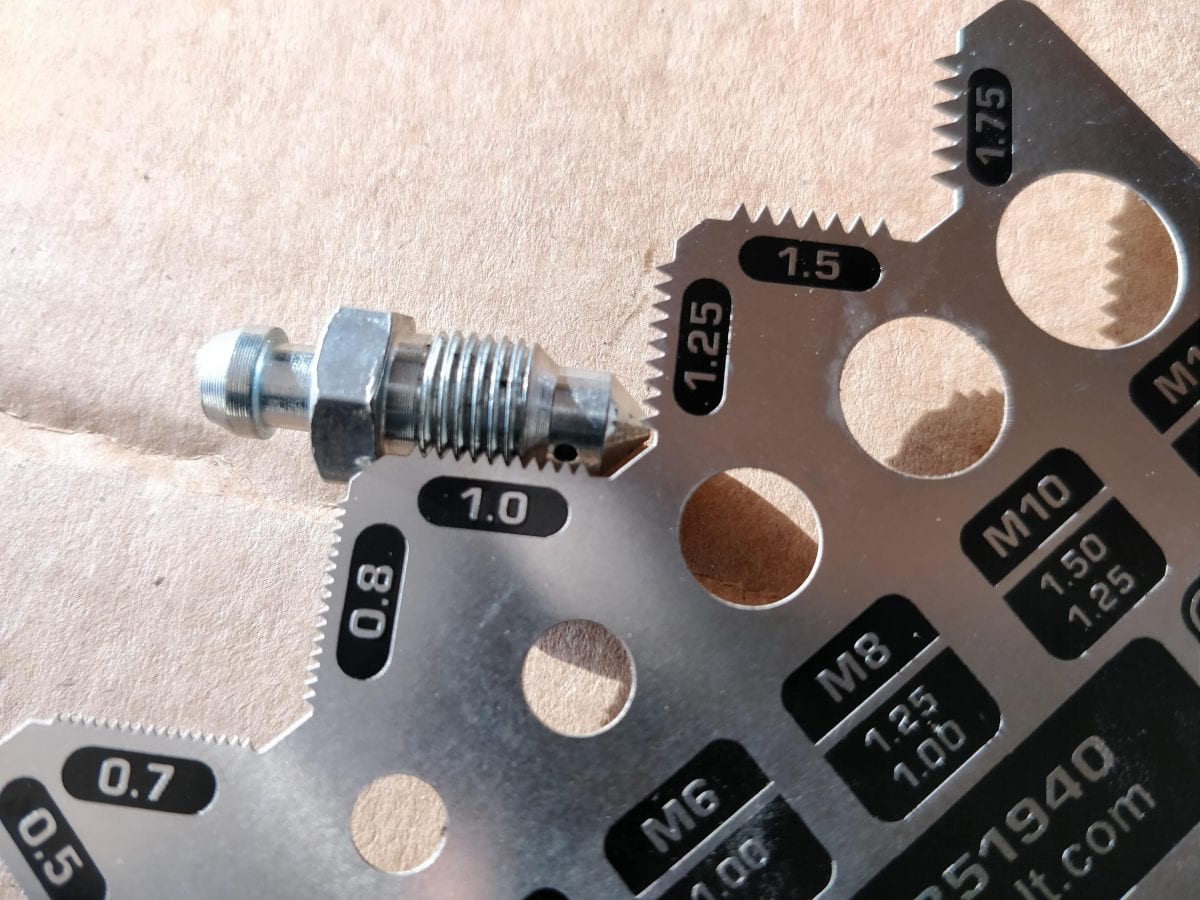

Brembo 18z bleed screw: 1.0mm thread pitch

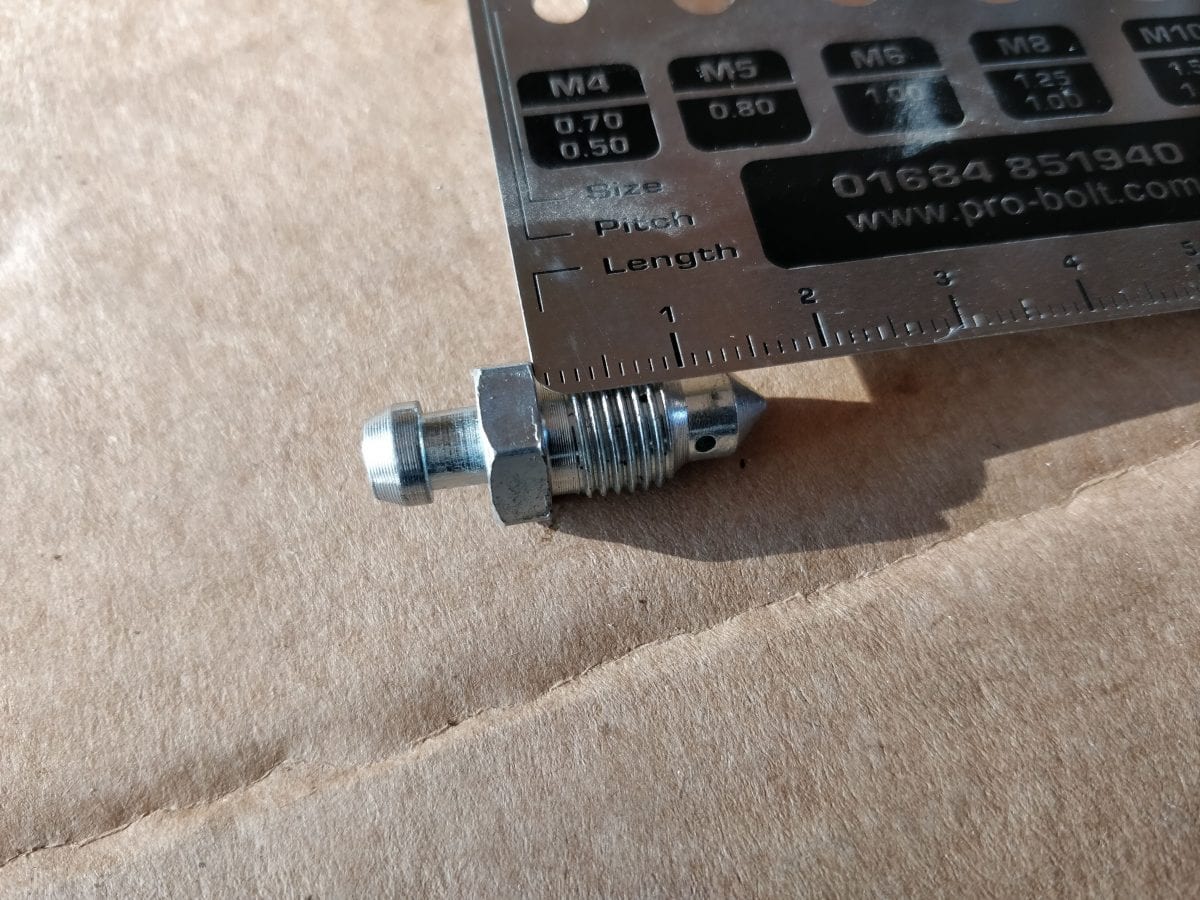

Brembo 18z bleed screw: 16mm from base of head to tip.

It had a touch excess wiggle room in the M10 hole but I think that’s because the M10 gauge is for 1.5 and 1.25 pitch threads and this was only 1mm. I’ve never in my life seen an M9 bleed screw so M10 seems most likely. Look at the photo and make your own mind up…

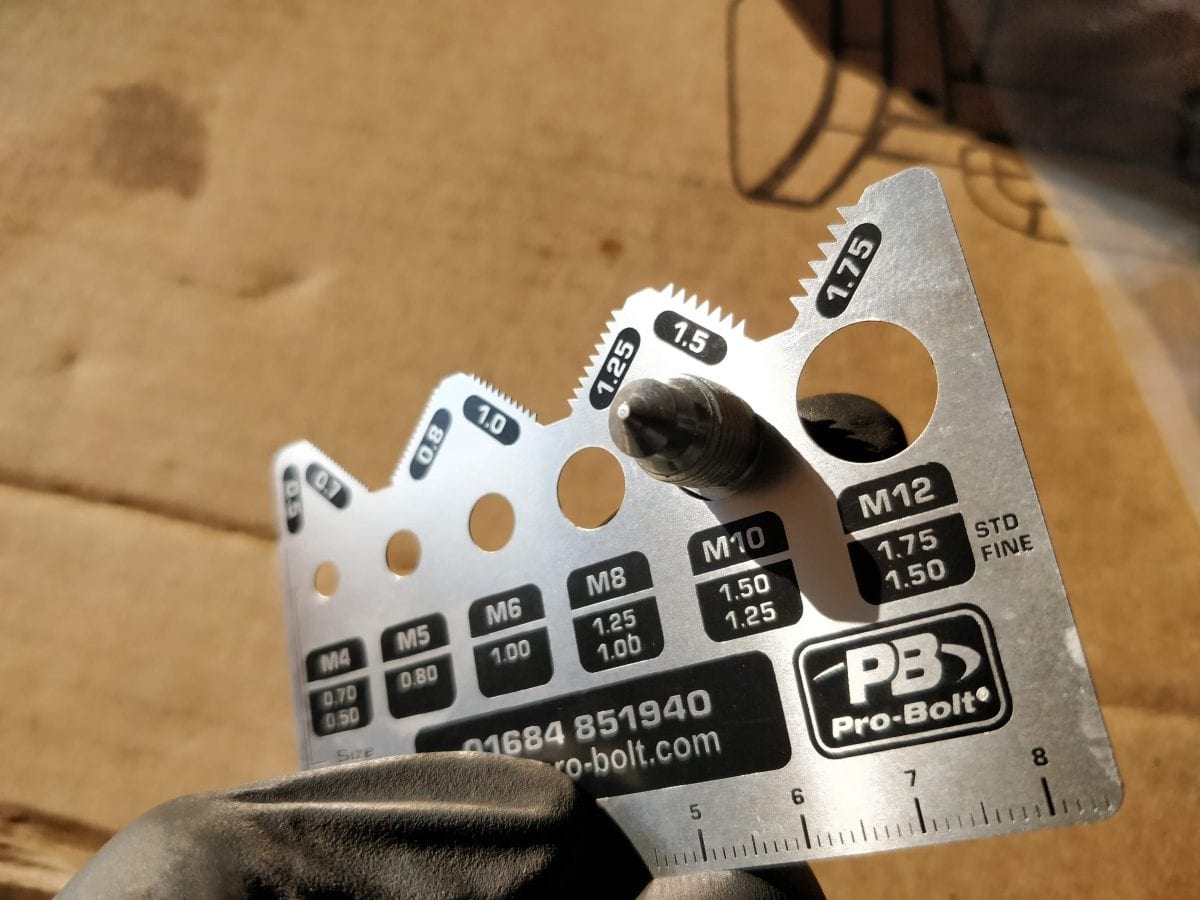

Brembo 18z bleed screw: M10?

Hope that helps you out, Andy.
